FALL PROTECTION AND RESCUE
Confined Space Entry Tripods

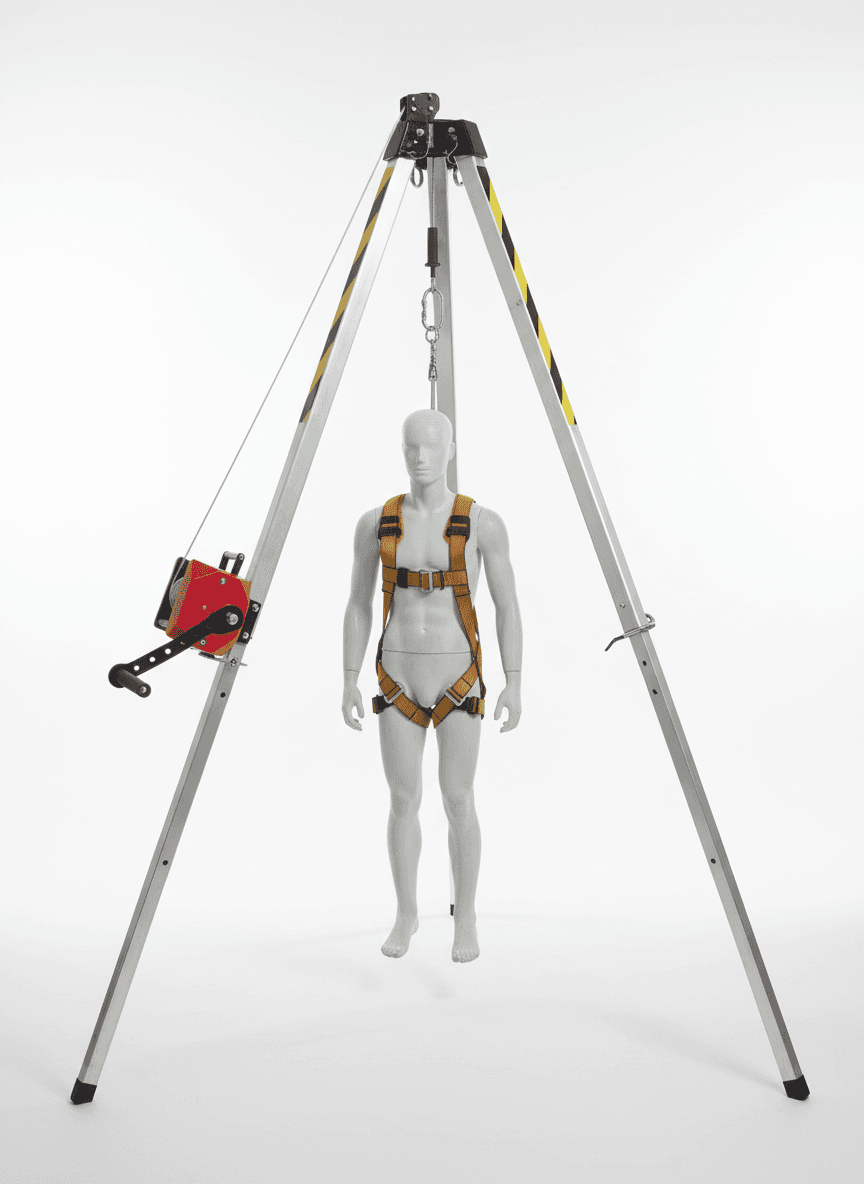

A tripod serves as a vital tool, facilitating seamless access for workers navigating confined spaces like manholes and tanks. Offering a method for both controlled ascent and descent of material and personnel, it becomes an indispensable safety measure, ensuring the safeguarding of workers against potential falls, especially in instances where the depth of the space necessitates heightened protection.
Variant Specification
Maximum load capacity: 300kg
Single person use at a time
Auxiliary Anchorage points: 2
Anchorage point Breaking Strength: 23kN
Maximum working height: 7ft
Maximum floor coverage: 1.5m Diameter
Lanyard length: 3 to 6 Meters.
Product Features

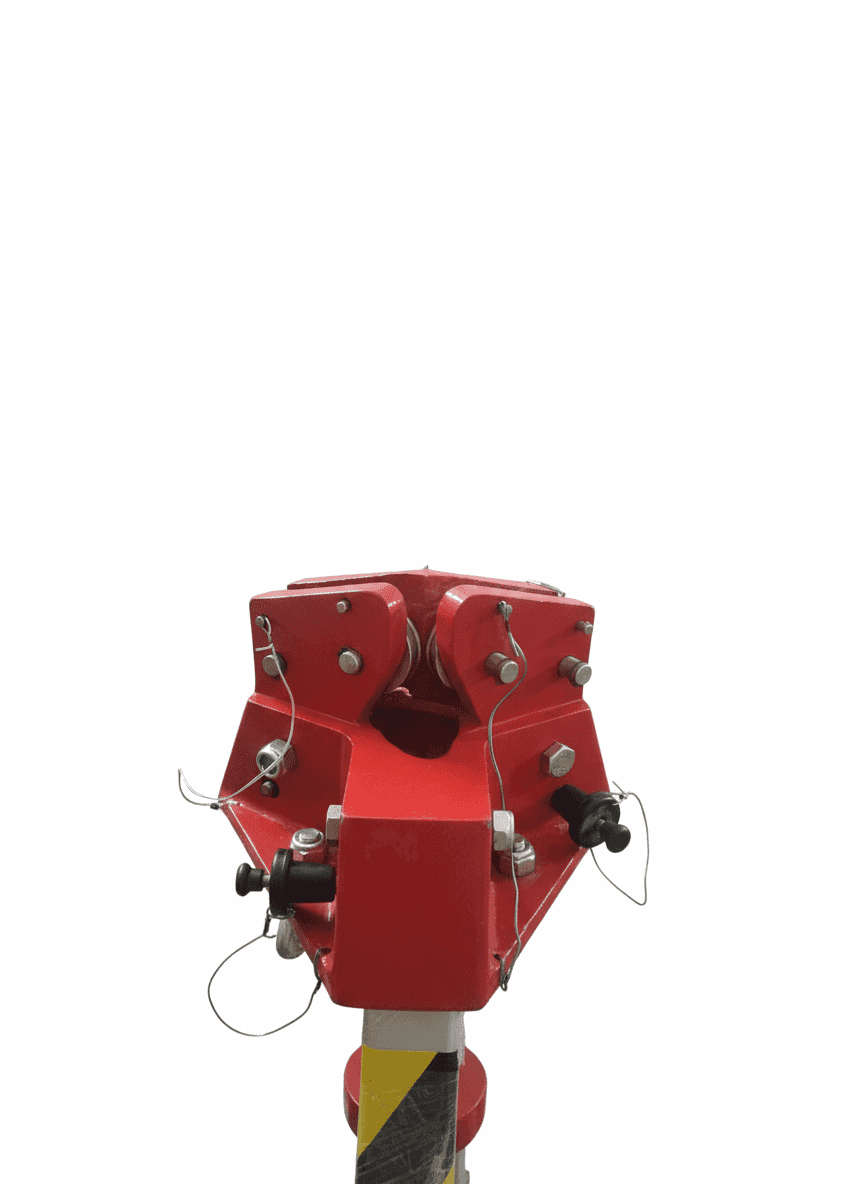

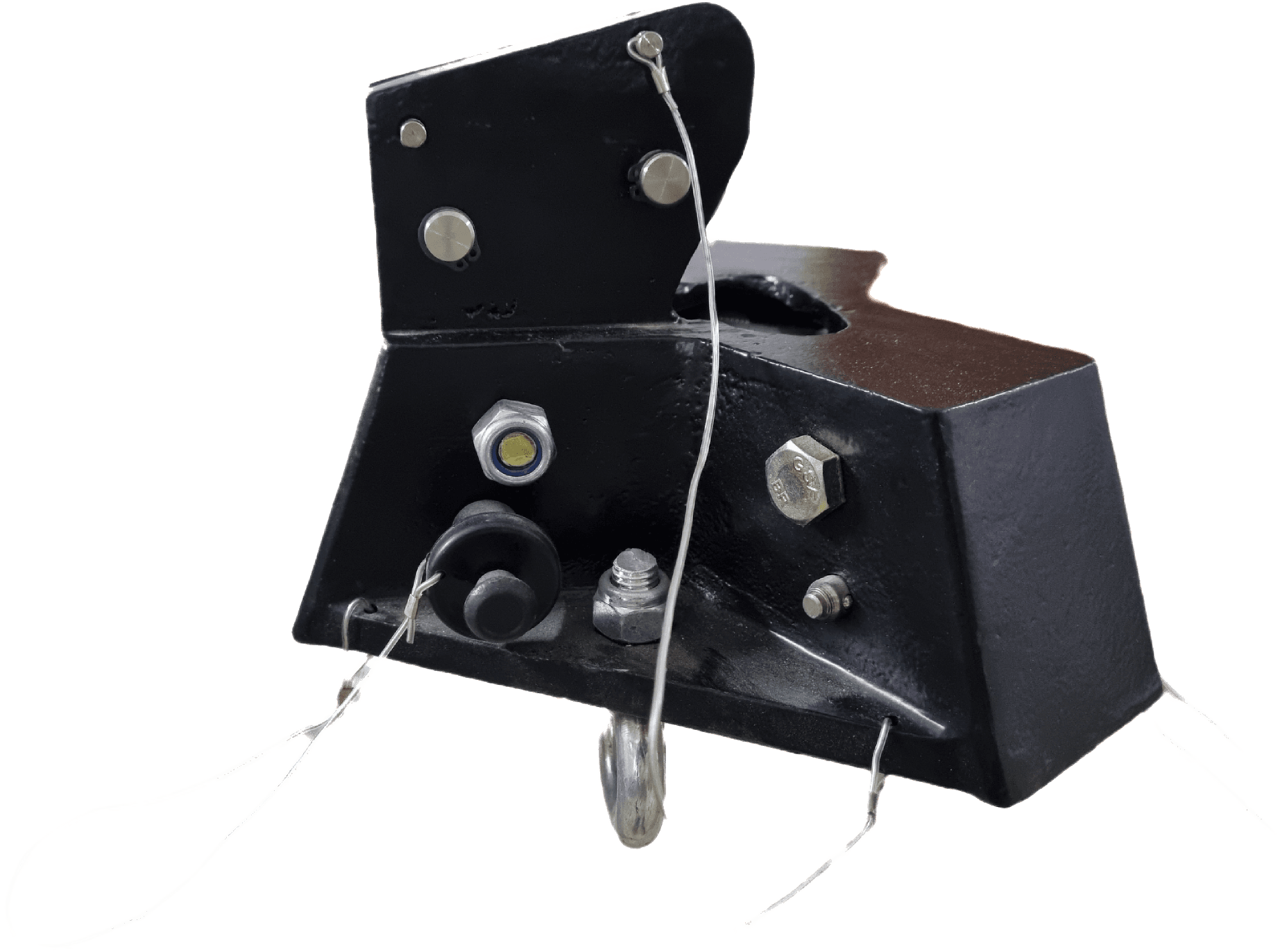

A robust one-piece cast aluminum alloy head ensures strength and durability, featuring a double-channel pulley for smooth cable passage.
Includes two auxiliary Anchorage bolts on the head for versatile attachment points with 23kN Breaking Strength.
Foot rest with textured foot pad for enhanced friction and stability, providing a secure base and skid prevention.

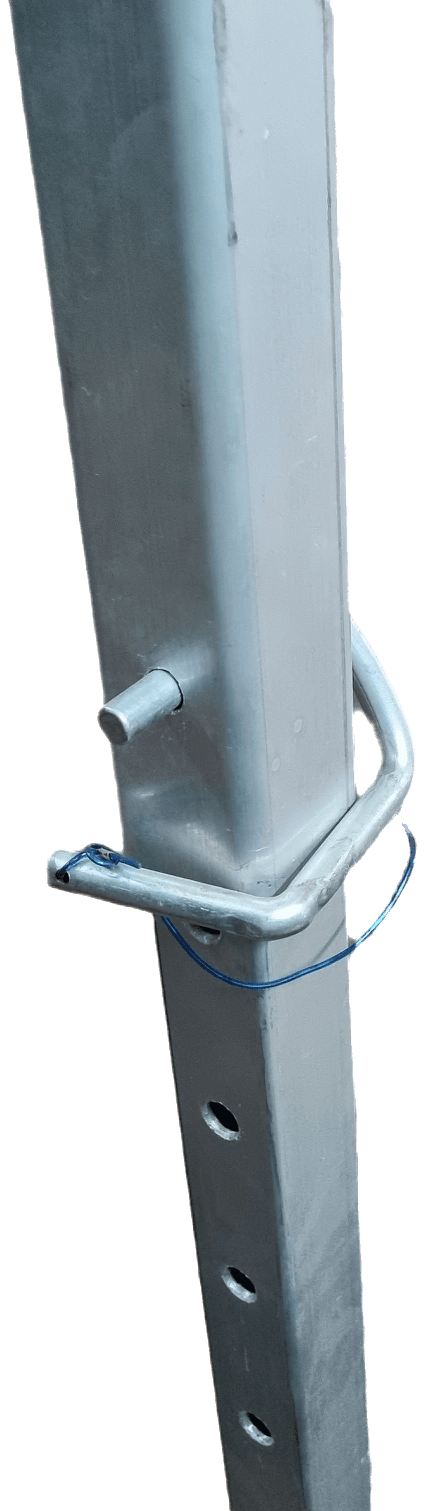

Telescopic aluminum legs, offering adjustable height and secure z-locking pin mechanism, with a maximum extension of 7ft.

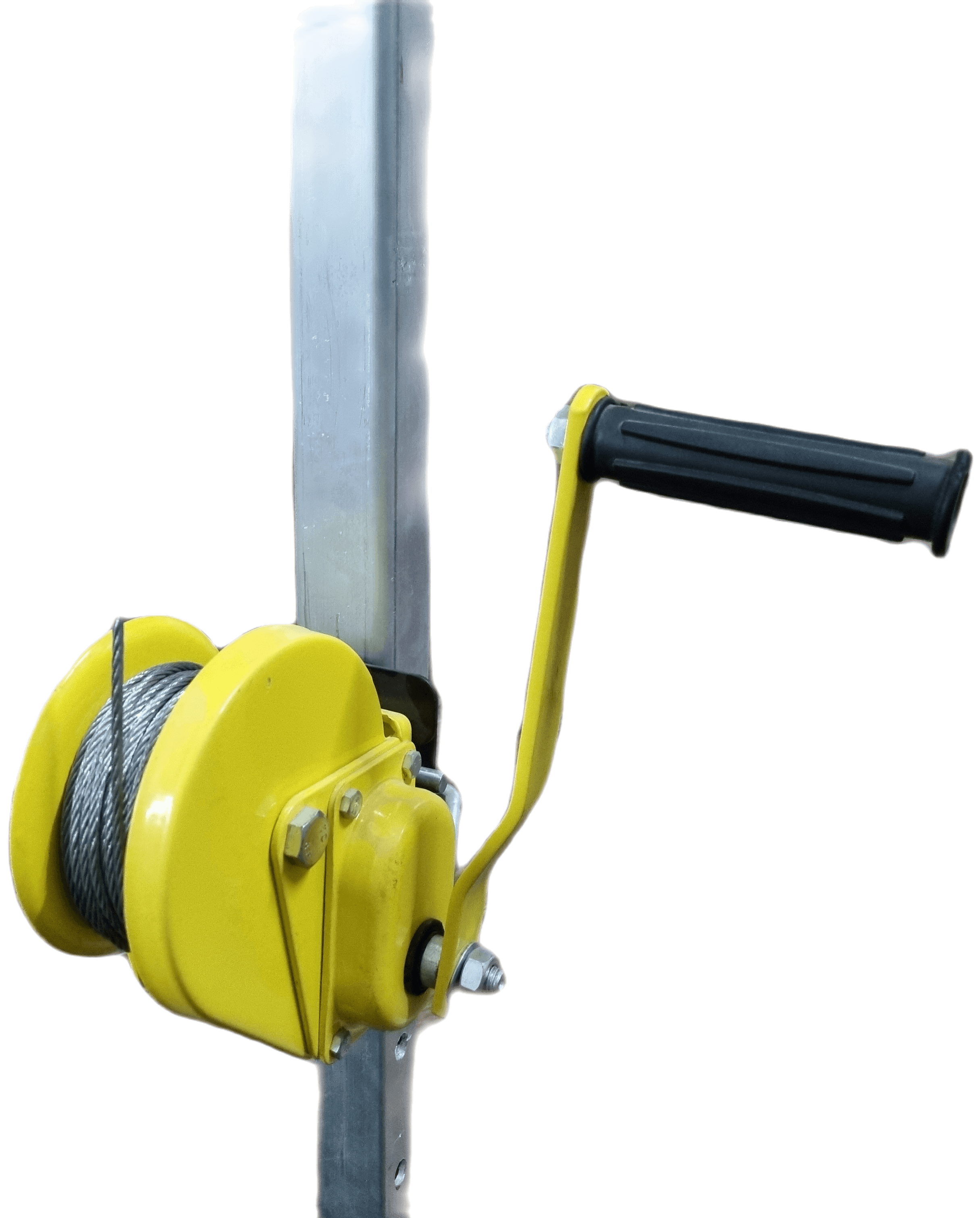

The winch comes equipped with a mounting bracket for seamless compatibility and easy installation.

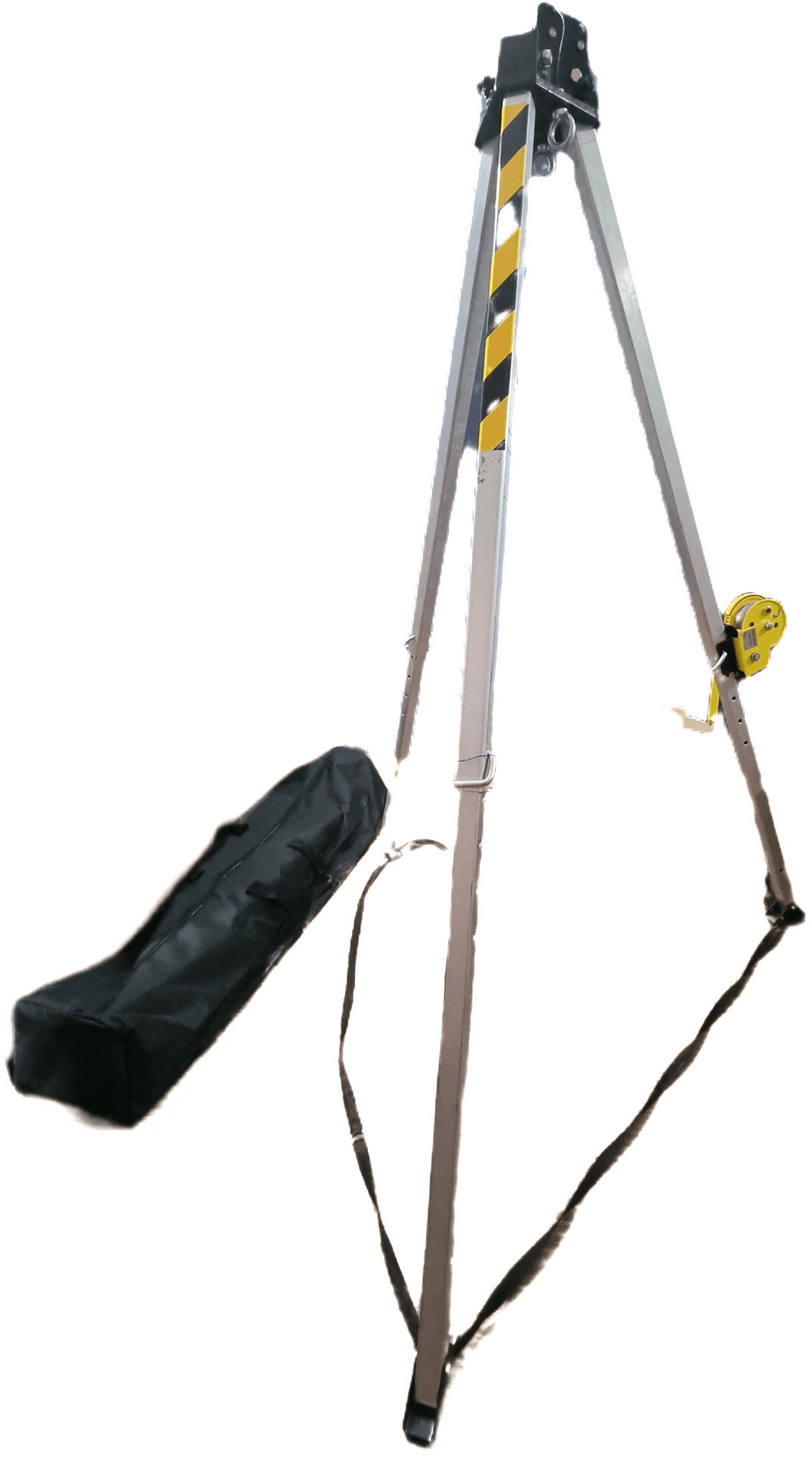

Enhancing portability, a robust carry bag is included for added convenience.
Certifications
EN795:2012 Type B Certified
